Changlin Crawler Hydraulic Excavator ZG520 Compact Mini Excavator Equipment

Name: Changlin Crawler Hydraulic Excavator ZG520 Compact Mini Excavator Equipment
Brand: changlin
Price: 5000 USD

Wholesale Changlin Crawler Hydraulic Excavator ZG520 Compact Mini Excavator Equipment from china suppliers

Brand Name : changlin

Model Number : ZG520

Place of Origin : CHINA

MOQ : 1

Price : USD5000-USD100000

Payment Terms : L/C, T/T

Supply Ability : 30units/per month

Delivery Time : 5-8work days

Operating weight (Kg) : 50500

Rated bucket capacity (m³) : 3.2

Overall length (mm) : 11657

Overall width (Standard track shoe) (mm) : 3340/3562 (over steps)

Overall height (mm) : 3998

Standard track shoe width (mm) : 600

Travelling speed (H/L) (Km/hr) : 5.5/3.1

Swing speed (rpm) : 9.4

Gradeability (Degree (%)) : 35 (70%)

Ground pressure (Kgf/cm²) : 0.85

Maximum digging radius (mm) : 10922

Maximum digging depth (mm) : 6453

Maximum digging height (mm) : 11020

Bucket digging force (kN) : 290

Stick digging force (kN) : 270

Diesel engine : Cummins QSM11

Type : 6-cylinder in-line, four-stroke turbocharger

Rated power : 280kW@2000rpm

Contact Now

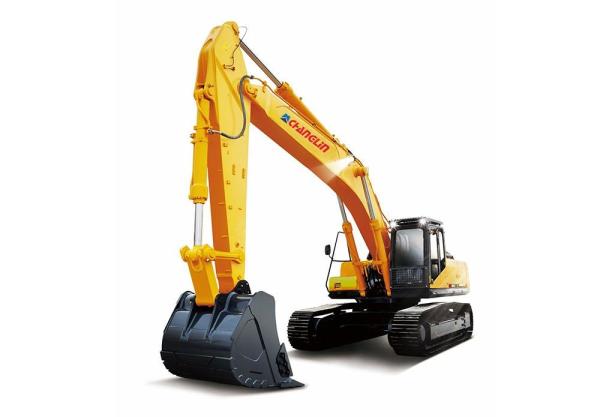

CRAWLER EXCAVATORZG520

The ZG520 crawler excavator is configured with heavy-duty reinforced boom, short stick, bucket, widened heavy-duty chassis and optimized box-shaped structure, to accommodate various working environments, even in extremely harsh working conditions.

Changlin Crawler Hydraulic Excavator ZG520 Compact Mini Excavator Equipment

The exclusive cab structure provides more foot space.

Changlin Crawler Hydraulic Excavator ZG520 Compact Mini Excavator Equipment

GRAMMER adjustable suspension seat is used in the excavator to adapt to uneven terrains.

Changlin Crawler Hydraulic Excavator ZG520 Compact Mini Excavator Equipment

The excavator bucket adopts thickened steel plate, and the bucket teeth are strengthened and lengthened for greater wear resistance.

Changlin Crawler Hydraulic Excavator ZG520 Compact Mini Excavator Equipment

The strengthened box type structure is fully welded using low stress high tensile steel plate.
